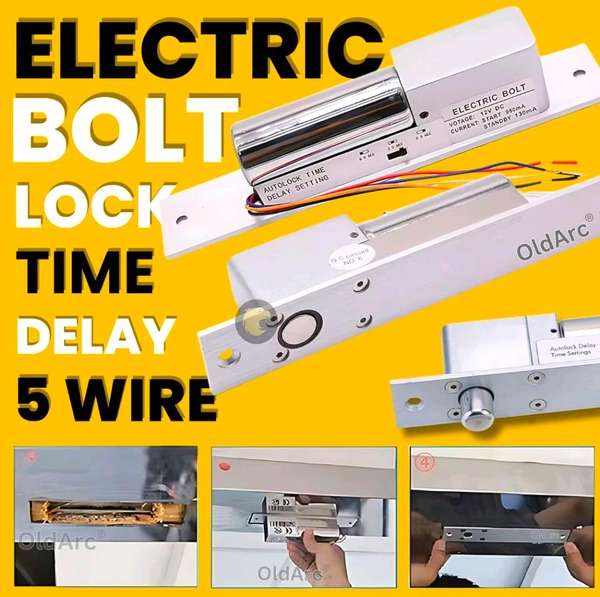

OldArc Smart Electric Bolt Lock | 5 Wire Autolock Deadbolt with Time Delay & Door Lock Status Feedback | 12VDC Fail Safe Drop

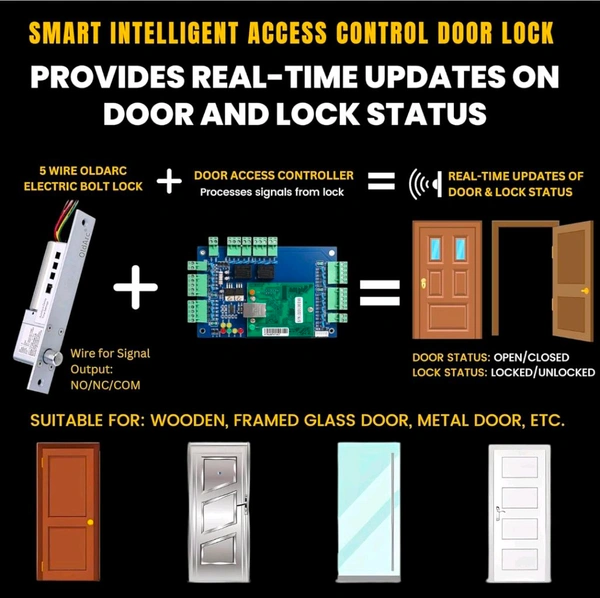

🔒🚪5-Wire Connection: This 5 Wire featured Intelligent Electric Bolt Lock When connected to a multi-door controller, provides detailed & real-time feedback on both Door + Lock status, allowing centralized control of doors. 🔴Red: + power (Connects to the positive of power supply). ⚫Black: - Power (GND) (Connects to the negative of power supply). 🟠Orange/Yellow: NC - Used for door status signal. ⚪White: Com - Used for Common connection for status signal. 🔵Blue: NO - Used for lock status signal

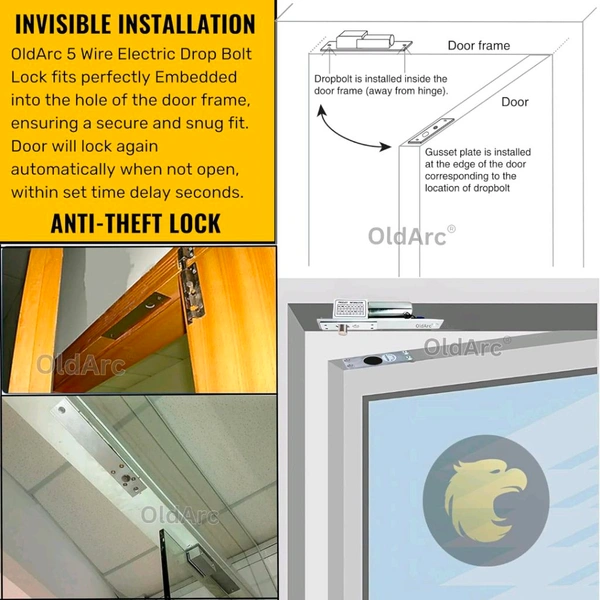

👤🕵️‍♂️Anti theft Hidden Installation: This Electric Deadbolt Lock Fits perfectly into the hole in the door frame corresponding to the magnetic plate installed on swing door ensuring a secure & snug fit.

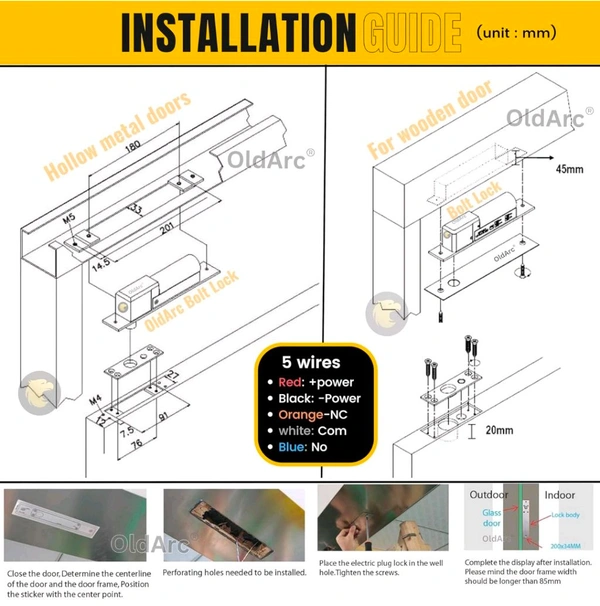

📝🔧⚠️For Wiring/installation: Refer to the Product listing 4th & 5th image and manual in the box under the guidance of Professional Electronic Lock Integrator. For Virtual Technical Support CALL OldArc AT PACKER CONTACT DETAILS IN ADDITIONAL INFORMATION.

🔒🚪For Easy 2 Wire Connection with Standalone OldArc Access Control KM-35 : Drop Bolt lock + Access Control KM-35 + Exit Switch + Power Supply (12V 5Amp) 🔴Red: + power (Connects to the positive of power supply). ⚫Black: - Power (GND) (Connects to the Access Control NC).

🏢Use Of Application: Securing all types of wooden, glass or metal doors of JEWELRY STORES, SECRET ROOMS, SERVER ROOMS, REAL ESTATE OFFICE, DR. OFFICE, OTHER OFFICES etc

⚡Fail Safe Mechanism : Locked when power on, but unlocked when power off. ⚡Working Voltage: DC12V. Working current: Start state 450mA, Persistent state 450mA. 💧🚫This lock is not waterproof, can not be used in rain or water.

📙Special Features: Ultra-low temperature design, less heat, safer and more durable, Build with High quality aluminum alloy material, rugged, anti corrsion, Photoelectric technology, reduce mechanical failure, Low power consumption, moderate starting current.

📦Package List: 1 x OldArc 5 Wire Electric Drop Bolt Lock 1 x Magnetic Base 1 x Faceplate 1 x User Manual 1 x Installation. 📏Lock's weight is 400g and it measures Main Lock body - 35 (W) x 205 (H) x 45 (D) mm. Dimensions Magnetic base - 25 (W) x 90 (H) x 3 (D) mm. Lock Bolt core: 16MM diameter & Extends.

Brand: ‎OldArc

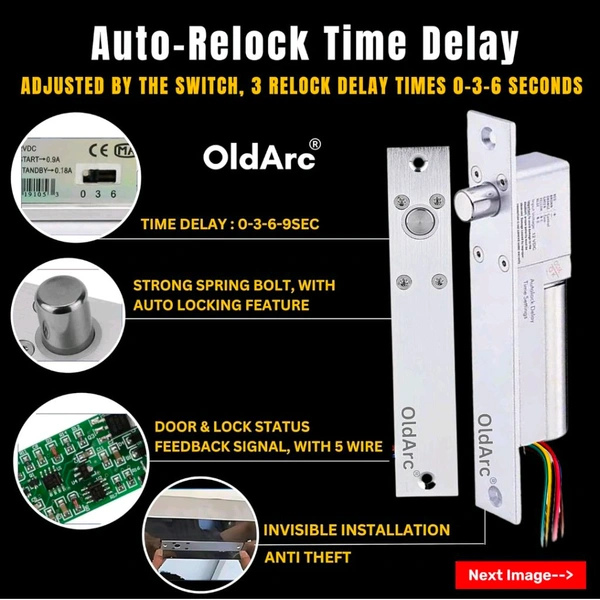

Special Feature: ‎Door/Lock Status Feedback Signal, Sutable for all kinds of Doors, 5 wire Connectivity, Built-in voltage spike suppressor, Alluminium Alloy Metal Material, Compatible with Door Controllers, Tested to 500000 operations, Door Close Time Delay Function 0/3/6sec, Fail-safe type, unlocked when power off, locked when power on, Auto-relock if no Action within 5 secs

Lock Type: ‎Deadbolt/Dropbolt

Item dimensions: L x W x H ‎20.5 x 3.5 x 4 Centimeters

Material: ‎Aluminium

Recommended Uses For Product: ‎security

Style: ‎Electric Bolt Lock 5 Wire

Colour: ‎Grey

Number of Pieces: ‎1

Finish Type: ‎Stainless Steel

Included Components: ‎1 x Magnetic Base, 1 x Faceplate, 1 x Installation Kit, 1 x User Manual, 1 x OldArc 5 Wire Electric Bolt Lock

Controller Type: ‎key control

Shape: ‎Rectangular

Item Weight: ‎450 Grams

Control Method: ‎Remote

Manufacturer: ‎S S Communications

Country of Origin: ‎India

Product Dimensions: ‎20.5 x 3.5 x 4 cm; 450 g

ASIN: ‎B0BX6YFM7M
