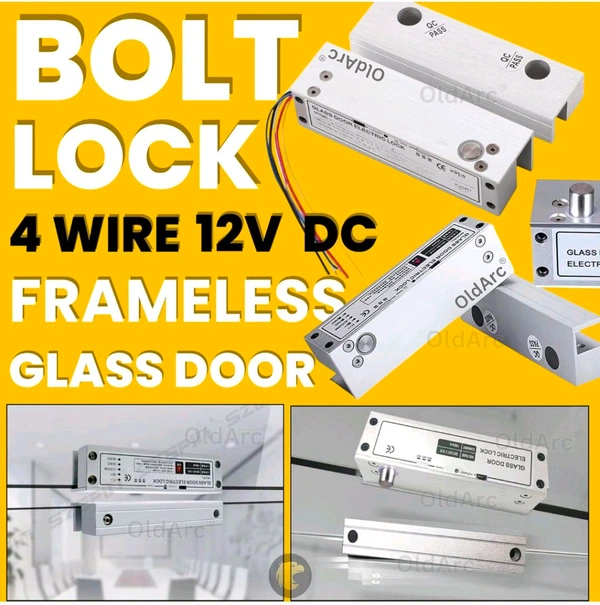

OldArc Frameless Glass Door Lock | 12VDC Electric Glass Door Lock | 4W Electric Bolt Lock for Fully Frameless Glass Door Electronic Lock Access Control System | Drop Bolt Lock Glass Door 8-12mm Thick

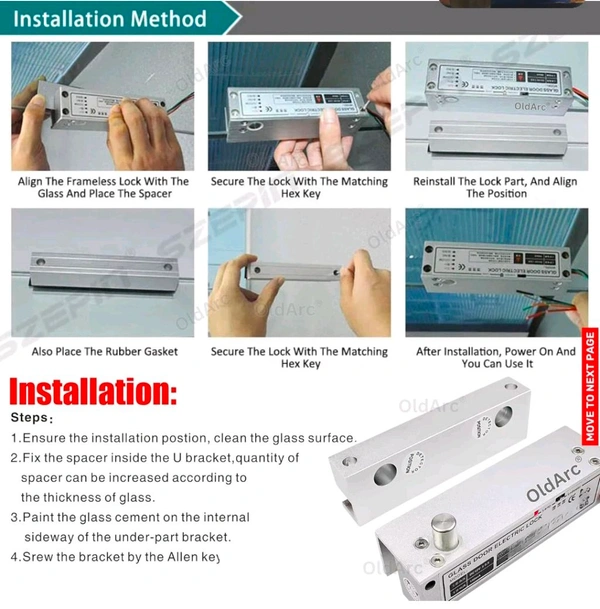

Screwless Easy Installation: ⚠️Door Gap for installation 10mm. Door Thickness 8-12mm 1.Install the Main Lock Body: Attach the Drop bolt lock part to the top frame of the glass door. 2.Install the Magnetic Plate: Place the magnetic plate at the bottom of the swing door, ensuring it aligns with the bolt lock. 3. Connect to a 12V DC power source (or if any access control refer to bullet point 4).

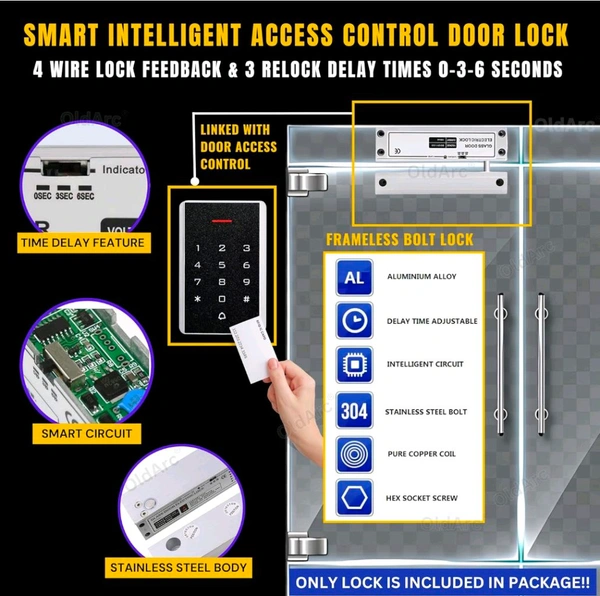

🔒🚪Commercial places offices & Showrooms with glass doors require OldArc Electric Drop Bolt Locks for Control Entrance reasons. This OIdArc Lock Easily connects with Access Control devices like OldArc KM-35 etc (Keypad, Card, Fingerprint) Exit

⚡Easy 4 Wire Connection with Standalone OldArc Access Control KM-35 : Frameless Glass Drop Bolt lock + Access Control + Exit Switch + Power Supply (12V 5Amp) 🔴Red: + power (Connects to the positive of power supply). ⚫Black: - Power (GND) (Connects to the Access Control NC). Remaining 2 wire 🟡Yellow- NC ⚪White: Com (for door access controller).

⚡⚠️Working voltage 12V-DC | ⏱️Autolock time delays (0/3/6/9 sec) | 🔒Fail Safe - Locked when power on, but unlocked when power off.

📝🔧⚠️For Wiring/installation: Refer to the Product listing 4th & 5th image and manual in the box under the guidance of Professional Electronic Lock Integrator. For Virtual Technical Support CALL OldArc AT PACKER CONTACT DETAILS IN ADDITIONAL INFORMATION.

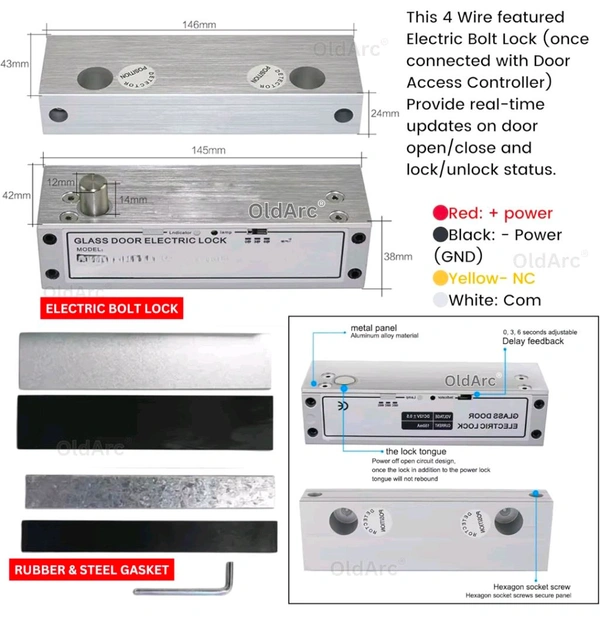

📏Lock's weight is 400g and it measures Main Lock body - 145mm(Length)* 42mm(width) *38mm(Height). Dimensions Magnetic base - 145mm (Length) x 43 (Width) x 24(Height) mm. Lock Bolt core: 12MM diameter & 14mm Extends.

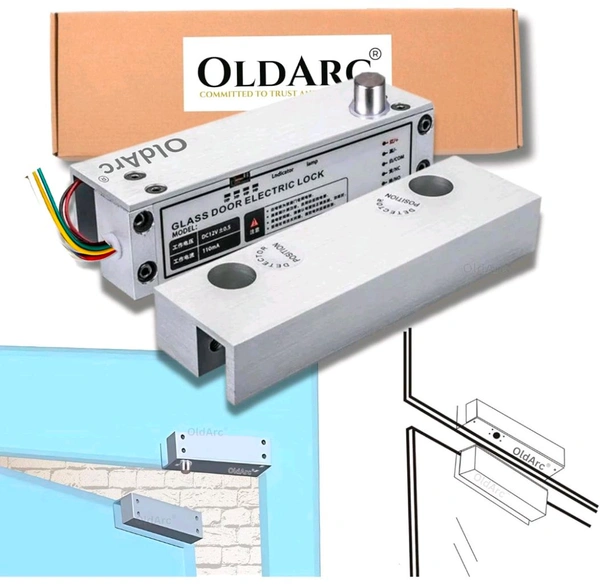

📦Package includes: 1 x OldArc Electric Drop Bolt Lock | 1 x Hex Screw Kit | 2X Metal & Rubber Gasket | 1 x Manual | Screw Pack

Door Gap for installation 10mm (betweeen door frame and door). Door Thickness 8-12mm.

Made in India, OldArc is most reputable brand in access control products & solutions

Brand: ‎OldArc

Special Feature: ‎Built To Secure Frameless Glass Doors, Pure Copper Coil, Autolock - Time delay Adjustment 0/3/6sec, No Drilling Installation, Hex Socket Screw

Lock Type: ‎Electric Deadbolt/Dropbolt

Item dimensions: L x W x H ‎14.5 x 4.2 x 3.8 Centimeters

Material: ‎Aluminium

Recommended Uses For Product: ‎Frameless Glass Door

Style: ‎Modern

Colour: ‎silver

Number of Pieces: ‎1

Finish Type: ‎Stainless Steel

Included Components: ‎2 X Metal & Rubber Gasket, 1 x Hex Screw Kit, 1 X OldArc Electric Drop Bolt Lock, 1 x Manual, Screw Pack

Controller Type: ‎key control

Shape: ‎Rectangular

Item Weight: ‎750 Grams

Control Method: ‎Remote

Manufacturer: ‎S S Communications

Country of Origin: ‎India

Item model number: ‎OL-BB101

Product Dimensions: ‎14.5 x 4.2 x 3.8 cm; 750 g

ASIN: ‎B0BVB5MQ86
