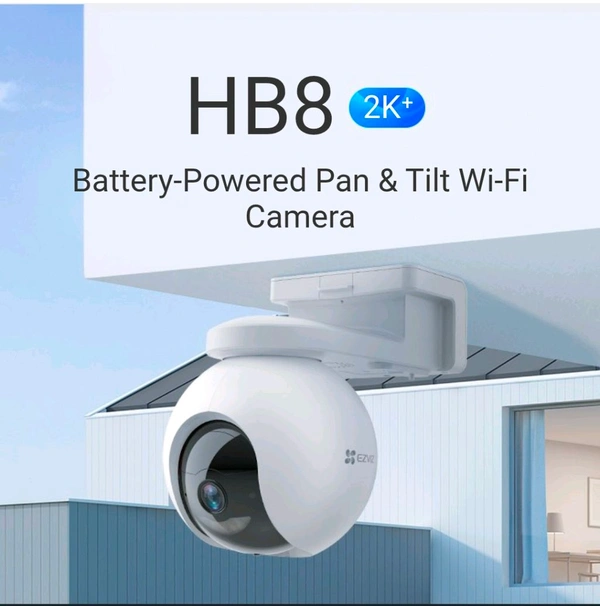

HB8 Battery-Powered Pan & Tilt Wi-Fi Camera Model: CS-HB8 (4MP)

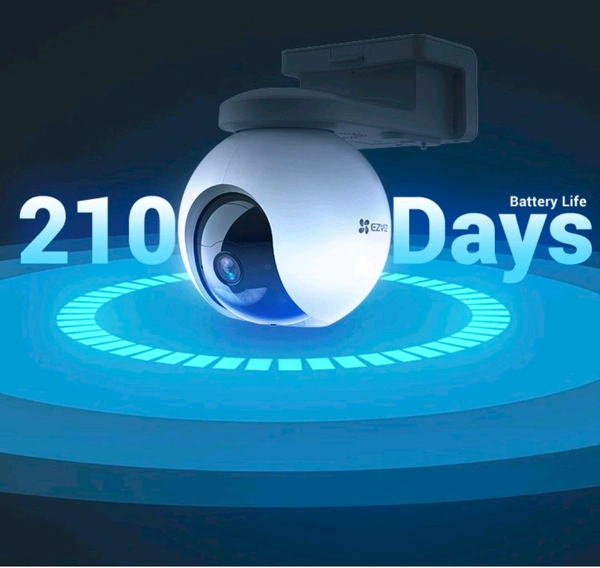

The HB8 2K⁺ features possibly the biggest battery capacity among outdoor pan & tilt security cameras in the market. And where other cameras are limited by the socket location or the length of a connecting wire, the wireless HB8 offers limitless options. Set it where you want it – wherever it gets the best views.

Don’t feel like climbing up and down a ladder to recharge the camera? Worried about losing power quickly due to frequent activity detection?

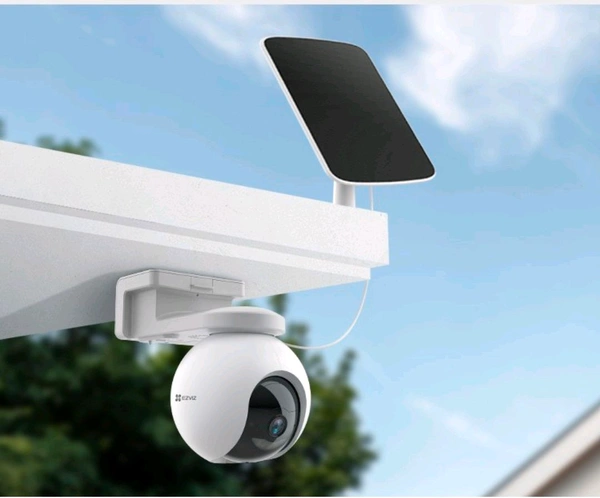

Connect your camera to the compatible EZVIZ Solar Panel² for constant power and forget about any low-battery anxieties once and for all.

The camera’s pan-and-tilt design and 2K⁺ resolution work in tandem to give you the complete picture with stunning details. These great features help you watch over large open areas with minimal effort.

When in action, the camera makes it hard for anyone to go unnoticed. Integrating a PIR sensor and the person-shape detection algorithm, the HB8 2K⁺ is smart enough to alert you to moving people rather than trivial objects. What’s better, it locks on the detected person and can track the whole process of an activity.

You don’t need to pay for storage cards or subscription plans before the camera starts saving important moments. The HB8 2K⁺ is embedded with a large, 32 GB eMMC storage capacity.

Store 10-minute recordings per day for up to 6 months

Also supports EZVIZ CloudPlay⁴ for more storage space

The camera’s active defense function provides an extra layer of protection. Upon detection of a moving person, the camera will set off a loud siren and flash two spotlights⁵ for immediate on-site deterrence.

Thanks to two built-in spotlights, the camera can render vivid color imaging even in pitch-black darkness. This allows you to see crucial details that would otherwise be lost

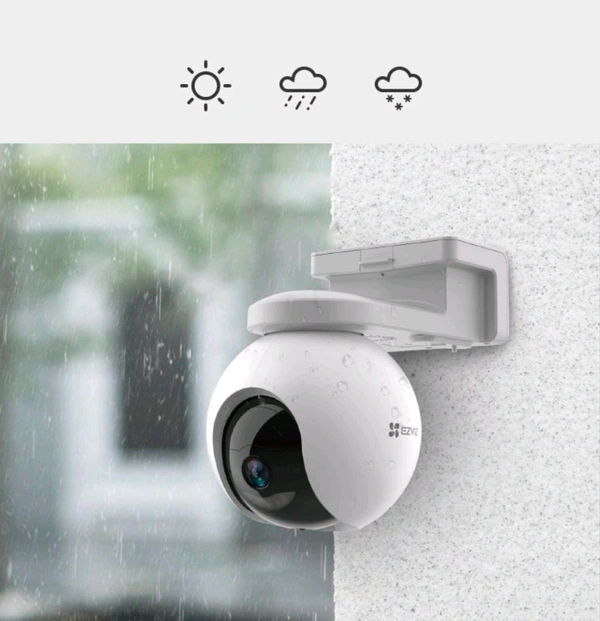

With its elegant design, the HB8 2K⁺ can fit in any household perfectly. It’s also weatherproof to deliver longstanding performance.

Enjoy two-way communications by simply using your phone. Or, pre-record specific voice messages thatautomatically play when people are detected on camera.

Easily manage your HB8 2K⁺ via the EZVIZ App. What’s better, you can voice-enable the live viewing with “Hey Google” or “Alexa” to check what’s happening on a bigger screen.

The camera features the advanced H.265 video compression technology, achieving better video quality with only half the bandwidth and half the storage space required by the previous H.264 video compression standard

Model: CS-HB8 (4MP)

Image Sensor: 1/3” 4-Megapixel Progressive Scan CMOS Sensor

Minimum Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR (Data is obtained from EZVIZ laboratories)

Shutter Speed: Self-adaptive shutter

Lens: 4mm @ F1.6 Viewing angle: 100°(Diagonal), 83°(Horizontal), 44°(Vertical)

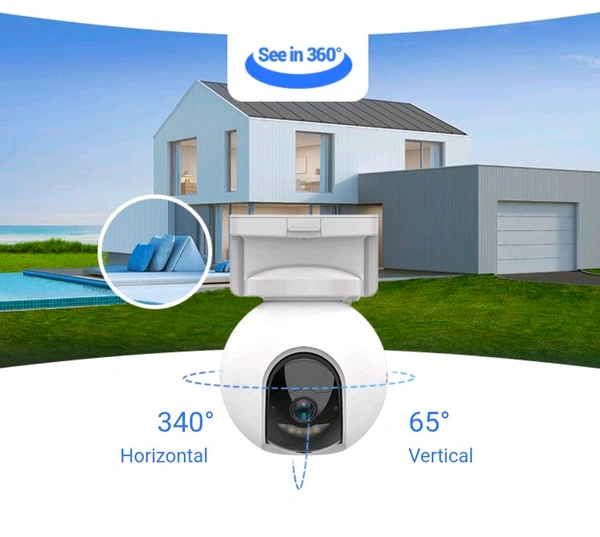

PT Angle: Pan: 340°, Tilt: 65°

Day & Night: IR-Cut filter with auto-switching

DNR: 3D DNR

Night Vision: Up to 49 ft / 15 m

Max. Resolution: 2560 × 1440

Frame Rate: 15fps. Self-Adaptive during Network Transmission

Video Compression: H.265 / H.264

Video Bit Rate: Quad HD; HD; Standard. Adaptive Bit Rate.

Audio Bit Rate: Self-Adaptive

Max. Bitrate: 2 Mbps

Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n

Frequency Range: 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth Supports: 20 MHz

Security: 64 /128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK

Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps

Wi-Fi Pairing: AP pairing

Protocol: EZVIZ cloud proprietary protocol

Interface Protocol: EZVIZ cloud proprietary protocol

Minimum Network Requirement: 4Mbps

Detection: Smart Human Motion Detection

Two-way Talk: Supports

General Function: Anti-Flicker, Heart Beat, Password Protection, Watermark

Local Storage: Build-In 32GB eMMC Storage

Cloud Storage: Supports EZVIZ CloudPlay storage (Subscription required)

Operating Conditions: -20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing)

IP Grade: Weatherproof Design

Power Consumption: Max. 10W

Product Dimensions: 183 × 116 × 166 mm (7.20 × 4.57 × 6.52 inch)

Packaging Dimensions: 216 × 145 × 203 mm (8.50 × 5.71 × 7.99 inch)

Weight: Net: 803 g (28.32 oz) With package: 1060 g (37.39 oz)

Battery Capacity: 10400 mAh

Power Supply: DC 5V / 2A

- HB8 2K⁺ Camera

- Drilling Template

- USB Cable

- Screw Kit

- Quick Installation Guide

- Regulatory Information

- Quick Start Guide
