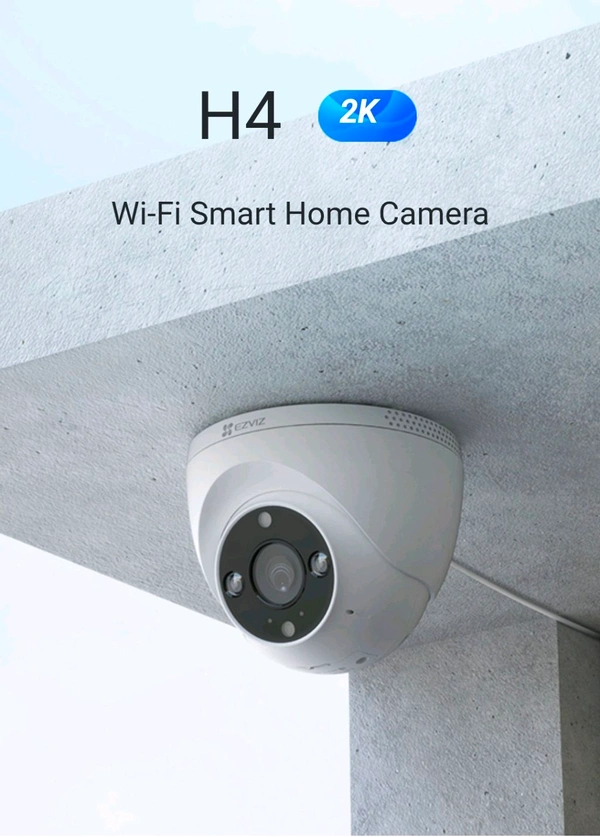

H4 2K Wi-Fi Smart Home Camera

Whether it’s outdoors or indoors, to protect your home or your business, the H4 serves as a compact and powerful security solution that plugs-in for 24/7 peace of mind.

The camera’s on-board AI algorithm helps it identify moving people and vehicles in particular. It reduces alerts caused by falling leaves or flying insects, and informs you when someone parks in your property area without permission.

Bringing its vision to 2K, the camera can render vivid, clear images in all lighting conditions. Even visitors backlit by the sun can be seen in clarity, without appearing dark in an overly exposed background.

No one can easily sneak in under the cover of darkness. Choose between the color mode and the infrared mode as you’d like. Or, set the camera to the “smart night vision” mode so its vision will automatically switch from black-and-white to full color upon motion detection.

It is easier than ever to hear and see what’s happening in your backyard wherever you are. The built-in dual-mic gives the H4 a big boost in picking up audio clearly, pushing the pickup distance to a remarkable 15 meters.

Enjoy two-way communication by simply using your phone. Or, pre-record specific voice messages that automatically play when people are detected on camera.

Upon detection of intruders, the camera will set off a loud siren and flash spotlights for on-site deterrence.

The H4 boosts up to 200m Wi-Fi coverage thanks to its high-performance dual antennas⁵. It also offers wired options for further convenience.

The IP67-rated H4 ensures long-lasting performance even under the toughest weather conditions.

With integration to your voice assistants, you can pull up the video feed by simply saying “Alexa” or “Hey Google.”

Safely store important moments or cute memories on a large local storage card, or by subscribing to the EZVIZ CloudPlay.

H.265 creates a smoother viewing experience while only using about 50% of the data storage space required by cameras with H.264

Model: CS-H4-R201-1H3WKFL

Image sensor: 1/2.7” Progressive Scan CMOS

Shutter Speed: Self-adaptive shutter

Lens: 2.8 mm, viewing angle: 106° (Horizontal), 122° (Diagonal) 4 mm, viewing angle: 86° (Horizontal), 102° (Diagonal) 6 mm, viewing angle: 52° (Horizontal), 62° (Diagonal)

DNR: 3D DNR

Lens Mount: M12

Day & Night: IR-cut filter with auto-switching

WDR: WDR

BLC: Supports

Night Vision: Up to 98 ft / 30 m

Max. Resolution: 2304 × 1296

Frame Rate: Max: 25fps; Self-Adaptive during network transmission

Audio Bit Rate: Self-Adaptive

Max. Bitrate: 3Mbps

Video Compression: H.265 / H.264

Video Bit Rate: Ultra-HD; HD; Standard. Adaptive bit rate.

Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n

Frequency Range: 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth: Support 20MHz

Security: 64/128-bit WEP, WPA/WPA2,

Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 150Mbps

Wi-Fi Pairing: AP pairing

Protocol: EZVIZ Cloud Proprietary Protocol

Interface Protocol: EZVIZ Cloud Proprietary Protocol

Wired Network: RJ45 × 1(10M/100M Adaptive Ethernet Port)

Smart Alarm: Motion Detection, AI-Powered Human Shape Detection / Vehicle Shape Detection

Customized Alert Area: Supports

Two-way Talk: Supports

General Function: Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark

Local Storage: Supports microSD card storage (up to 512 GB)

Cloud Storage: Supports EZVIZ CloudPlay storage

IP Grade: IP67

Operating Conditions: -30℃ ~ 50℃, humidity 95% or less (non-condensing)

Power Supply: DC 12V / 1A

Power Consumption: MAX. 8W

Dimensions: 106 × 106 × 90 mm (4.17 × 4.17 × 3.54 inch)

Weight: 229 g (8.08 oz)

- H4 2K Camera

- Power Adapter

- Drill Template

- Screw Kit

- Regulatory Information

- Quick Start Guide
