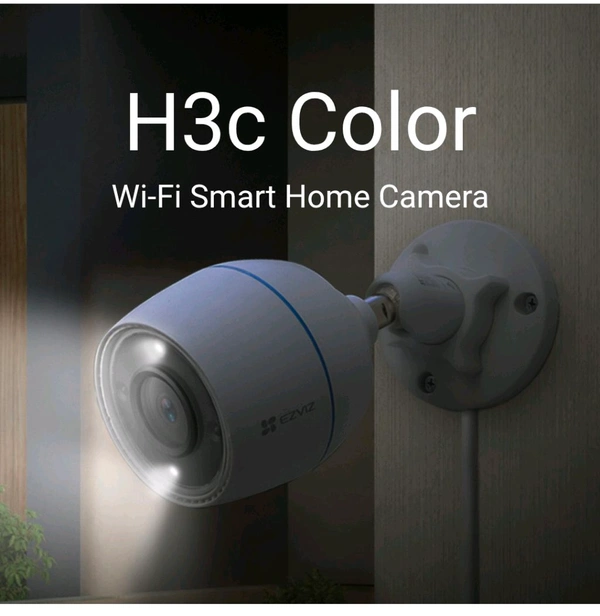

H3c Color Model CS-H3c-R100-1K2WFL

The H3c Color camera is made to capture every moment vividly. It renders crisp images in 1080p resolution, and can record colorful details even at night, thanks to the two built-in spotlights.

The camera makes sure that no one can easily sneak in under the cover of darkness. The H3c Color renders color night vision up to 15 meters and infrared black-and-white vision up to 30 meters.

The camera‘s onboard AI algorithm helps distinguish and detect moving people in particular, so as to reduce insignificant alerts caused by falling leaves or flying insects. You will receive smarter notifications that matter to you.

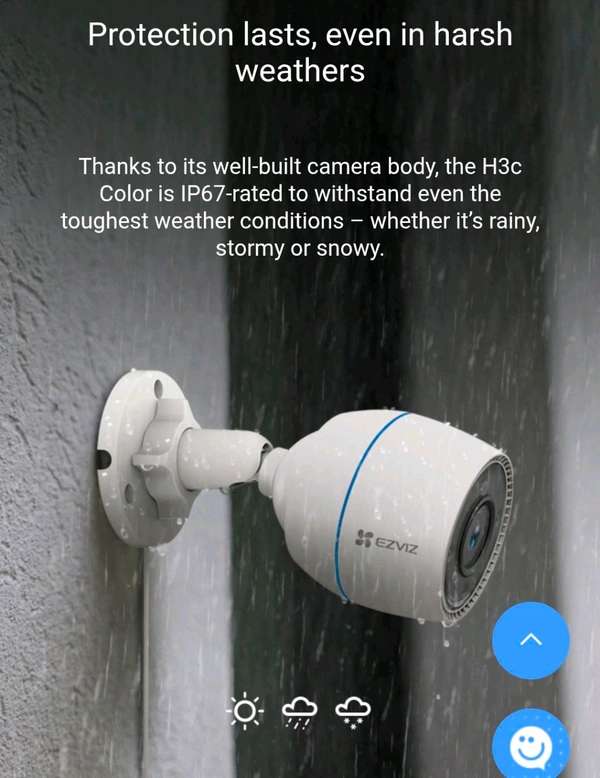

Thanks to its well-built camera body, the H3c Color is IP67-rated to withstand even the toughest weather conditions – whether it’s rainy, stormy or snowy.

Compact in design to go under the eaves or on the outer wall, the H3c Color is equipped with high-performance, built-in dual antennas to ensure stable, strong camera connection.

The H3c Color integrates EZVIZ’s beloved active defense function to provide an extra layer of protection. Upon detection of intruders, the camera will flash its two dazzling spotlights3 to let them know they have been detected.

The H3c Color comes with a built-in noise-canceling microphone, which can pick up clear audio in the surrounding area. You can see and hear what’s going on in your backyard or at your front door at any time.

You can integrate the H3c Color to your existing smart home system. Voice-enable the live viewing with “Hey Google” or “Alexa” to check what’s happening on a bigger screen.

You can secure your recorded videos on a local microSD card of up to 512 GB, or subscribe to EZVIZ CloudPlay for fully-encrypted cloud storage

Model : CS-H3c-R100-1K2WFL

Image Sensor: 1/2.7”Progressive Scan CMOS

Minimum Illumination: 0.01 Lux @ (F2.0, AGC ON), 0 Lux with IR

IR Night Vision : Distance Up to 98 ft / 30 m

Shutter Speed: Self-adaptive shutter

Lens: 4mm @ F2.0, view angle: 82° (Horizontal), 98° (Diagonal)

Lens Mount: M12

DNR: 3D DNR

WDR: Digital WDR

Day / Night Switch: IR-Cut filter with auto-switching

Max. Resolution: 1080p, 1920 × 1080

Frame Rate: Max: 30fps; Self-Adaptive during network transmission

Video Compression: H.265 / H.264

Video Bit Rate: Full HD; HD; Standard. Adaptive bit rate.

Audio Bit Rate: Self-Adaptive

Max. Bitrate: 2 Mbps

Wi-Fi Standard: IEEE802.11b, 802.11g, 802.11n

Frequency Range: 2.4 GHz ~ 2.4835 GHz

Channel Bandwidth: Supports 20 MHz

Security: 64 / 128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK

Transmission Rate: 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps

Wi-Fi Pairing: AP Pairing

Protocol: EZVIZ Cloud Proprietary Protocol

Interface Protocol: EZVIZ Cloud Proprietary Protocol

Wired Network: RJ45 × 1 (10M / 100M Adaptive Ethernet Port)

Dimensions: 72mm × 72mm × 157mm (2.83 × 2.83 × 5.98 inch)

Package Dimensions: 227 × 100 × 92 mm (8.94 × 3.94 × 3.62 inch)

Weight Net weight: 250 g (8.82 oz), With Package: 447 g (15.77 oz)

IP Grade IP67

Operating Conditions: -30 °C to 50°C ( -22 °F to 122 °F ), humidity 95% or less (non-condensing)

Function

Detection: AI-Powered Human Shape Detection, Motion Detection

Customized Alert Area: Supports

Integration: Works with Alexa, Google Assistant, IFTTT

General Function: Anti-Flicker, Dual-Stream, Heart Beat, Mirror Image, Password Protection, Watermark

Local Storage: Supports microSD card (Up to 512 GB)

Cloud Storage: Supports EZVIZ CloudPlay storage (Subscription required)

Power Supply: DC 12V / 1A

Power Consumption: Max. 6W

- H3c Color Camera

- Drill Template

- Screw Kit

- Waterproof Kit

- Power Adapter

- Regulatory Information

- Quick Start Guide
