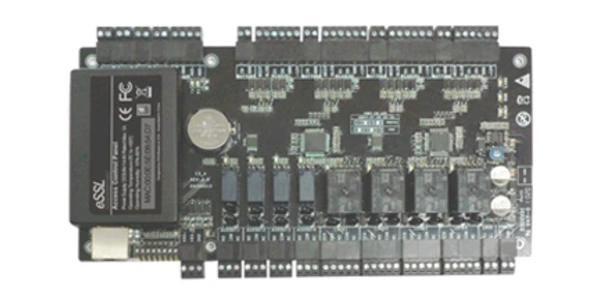

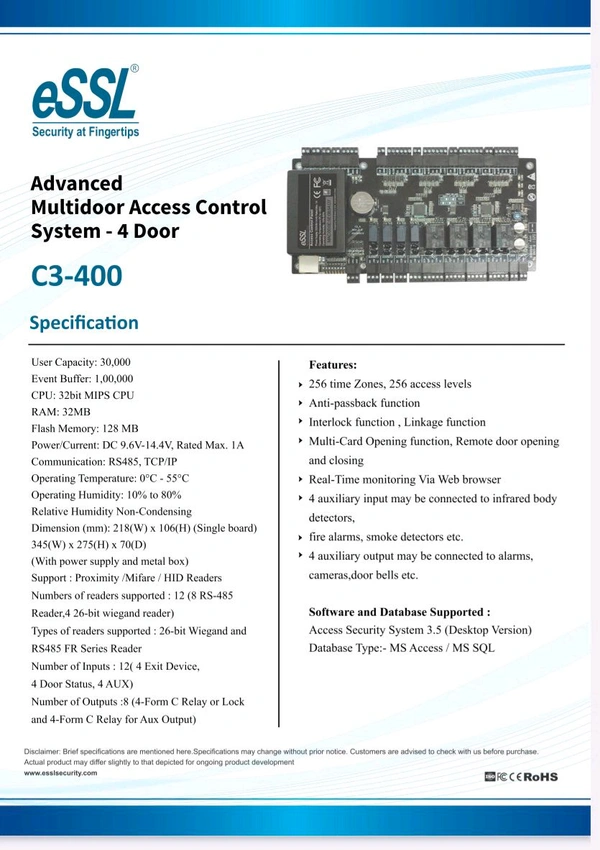

C3-400 Advanced Multidoor Access Control System - 4 Door

User Capacity: 30000

Event Buffer: 100000

CPU: 32bit MIPS CPU

RAM: 32MB

Flash Memory: 128 MB

Power/Current: DC 9.6V-14.4V, Rated Max. 1A

Communication: RS485, TCP/IP

Operating Temperature: 0°C - 55°C

Operating Humidity: 10% to 80%

Relative Humidity Non-Condensing

Dimension (mm): 218(W) x 106(H) (Single board) 345(W) x 275(H) x 70(D) (With power supply and metal box)

Number of Outputs : 2 (1-From C Relay for Lock and 1-Form C Relay for Aux Output)

Support : Proximity /Mifare / HID Readers Numbers of readers supported : 12 (8 RS-485 Reader,4 26-bit wiegand reader)

Types of readers supported : 26-bit Wiegand and RS485 FR Series Reader

Number of Inputs : 12( 4 Exit Device, 4 Door Status, 4 AUX)

Number of Outputs :8 (4-Form C Relay or Lock and 4-Form C Relay for Aux Output)
